Product Description：

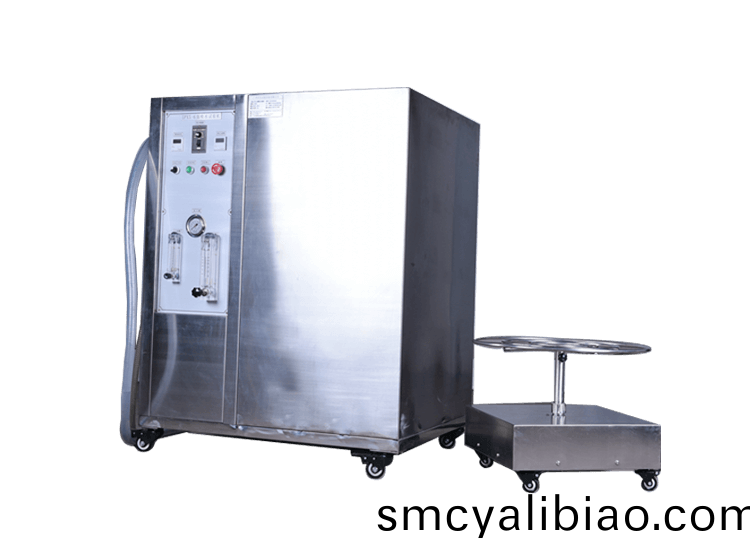

IPX5/6 Strong Water Jet Test Equipment (BND-IPX56A)

Test standard:

In accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)".

Equipment use:

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Product Features:

1, split type structure, safe and reliable.

2, Equipment rack and sample turntable are made of high-quality aluminum alloy and SUS304 # stainless steel plate, to ensure long-term use and does not rust

3, turntable electrical part is whole seal, effectively prevent water leakage.

4, the use of speed control motor turntable, the speed in the standard range stepless adjustable, and can control the forward and reverse rotation (with power for the sample test to prevent winding).

5, water flow through the flow meter adjustment, manual adjustment.

6, the nozzle: IEC60529 in accordance with the specifications for the system (below)

7, all electrical components such as LG, Omron and other imported brands; wiring process in line with national standards, power board layout is reasonable, wiring firm, clearly marked.

8, comes with water tank, water tank built-in water level float valve automatic control of water, and low water level alarm monitoring, effectively prevent the pump dry and damaged.

9, the test time through the time relay control, simple and practical; can be set: 0-999min (adjustable), the test is complete, automatically shut down; (IPX56AS: test time can be set on the touch screen).

10, IPX5 and IPX6 a key conversion, a key to start, automatic shutdown, simple and intelligent.
