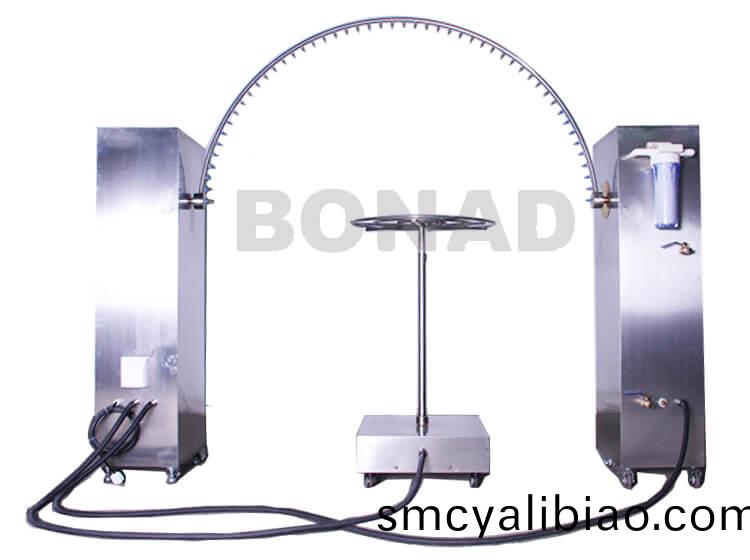

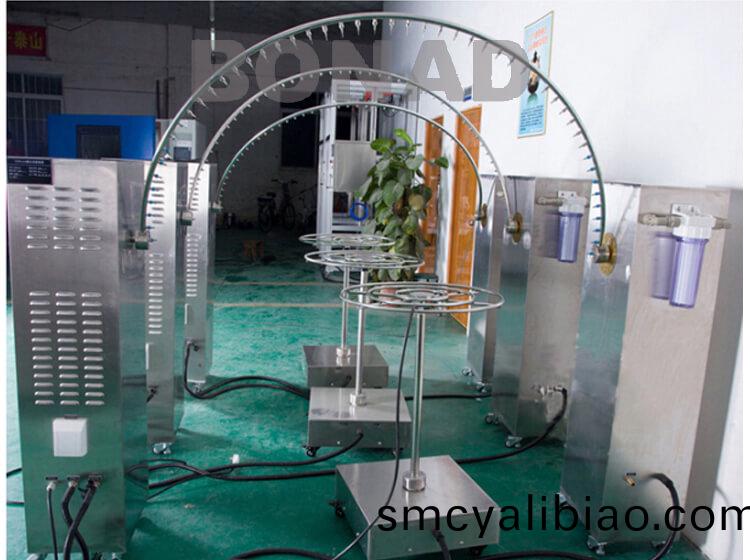

IEC 60529 IPX3/4 Oscillating Tubes Rain Test Equipment
Model:BND-IPX34C
Test standard:
Compliance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)".
Test Appliance:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
No. | Model | BND-IPX34C-R1600 | BND-IPX34C-R1400 | BND-IPX34C-R1200 | BND-IPX34C-R1000 | BND-IPX34C-R800 | BND-IPX34C-R600 | |||||
1 | Swing pipe size (mm) | R1600 | R1400 | R1200 | R1000 | R800 | R600 | |||||
2 | External dimensions (mm) | L4000*D3200* H2800 | L3800*D3000* H2600 | L3200*D2400* H2400 | L2800*D2200* H2200 | L2400*D800* H2000 | L2000*D1400* H1800 | |||||
3 | Flow (L / mm)) | 0-10L/min | 0-10L/min | 0-6L/min | 0-6L/min | 0-4L/min | 0-3L/min | |||||
4 | Turntable Size (mm) | ∮1000 (can customize,∮800∮600、∮400、∮200 turntable) | ||||||||||
5 | Turntable height adjustable range | 1750-2350mm | 1750-2350mm | 1350-1950mm | 1350-1950mm | 950-1550mm | 550-1000mm | |||||
6 | Pendulum tube diameter (mm) | >15 | 15 | |||||||||
7 | Water pore size (mm) | 0.4 mm | ||||||||||
8 | Pendulum tube angle | 120o（IPX3）,?350o（IPX4）or customize | ||||||||||
9 | Swing speed tube | 120°(to and fro)?4S、360°(to and fro) 12S(accurate control)or customize | ||||||||||
10 | Swing pipe material | SUS304?stainless steel | ||||||||||
11 | Turntable speed test | 1-5r/min(accurate control) | ||||||||||
12 | protective device | Leakage, water shortage, short circuit | ||||||||||
13 | Power?supply?(V) | 220V | ||||||||||
14 | Power（KW） | 1 | ||||||||||
15 | Standards | IEC60529:1989+A1:1999、（IPX3、IPX4) | ||||||||||
