Product Description：

Name：ISO 2248 Zero Distance Drop Tester - High Precision Equipment for Impact Resistance Testing

Type：BND-ZXD001

Equipment Overview:

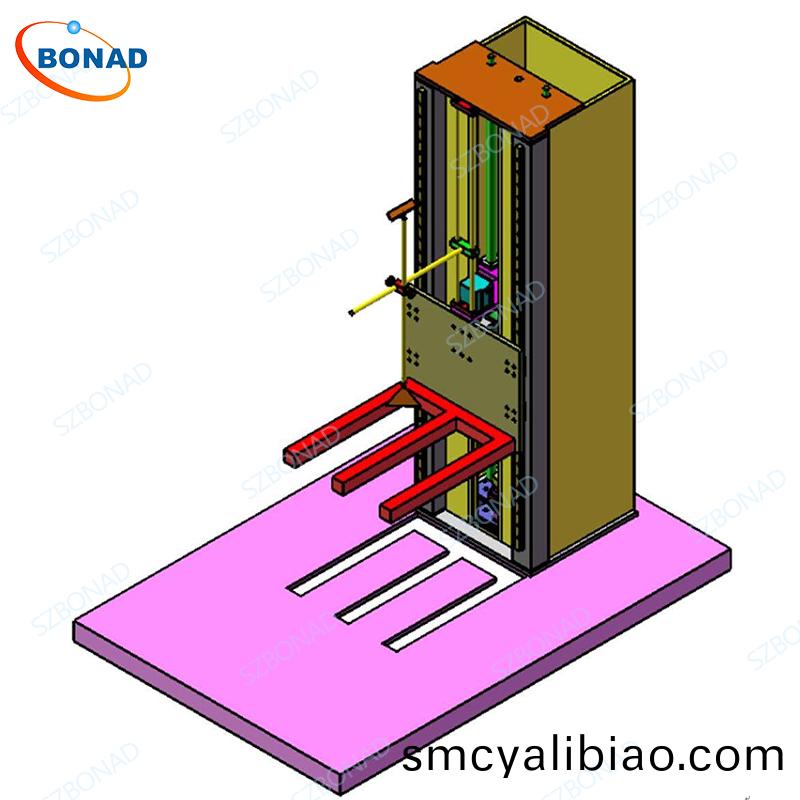

The Zero Drop Tester is primarily used to assess the impact of drop shocks on objects during actual transportation and handling processes, evaluating the impact resistance of items during transit. This device is mainly utilized for drop tests on larger items. It features an "E" shaped fork that can quickly move downward, serving as a test specimen holder. The test cargo is placed in balance according to the test requirements. During the test, the pallet moves downward at high speed, detaching from the specimen. Before the test cargo hits the base plate, the "E" shaped fork is embedded flush with the base plate under the action of a high-efficiency shock absorber. Theoretically, the Zero Drop Tester can perform drop tests from zero height to its maximum drop height range. The drop height is digitally set according to test requirements and automatically executes the drop test at the set height.

Compliance Standards:

lISO 2248-1985 Packaging Complete Transport Packages Vertical Impact Test Standard

lJIS Z0202-1994 Packaging Goods Drop Test Method

lASTM, D5276,ISTA, and other related testing standards

lGB/T 4857.5-92 Packaging Transport Packaging Drop Test Method

lGB/T 1019-2008 General Rules for Household and Similar Electrical Appliance Packaging

Main Parameters:

If you are looking for more different drop test machines for drop testing of small packages less than 80 kg, please check out our Pneumatic drop tester, Single-arm Drop Tester and Double-arm Drop Tester, or directly reach us to learn more.
