Product Description：
Name：BONAD 2000 W Water-Cooled Laser Power Measurement Sensors
Type：BND-2000W-D50
The BND-2000W-D50 thermopile sensor is a water cooled laser power and energy thermal sensor with a 36 mm aperture. It can measure optical power from 10 to 2000 W . It has the spectrally flat broadband BB coating and covers the spectral range from 266 nm-10.6 um.
Features:
1.Measures laser power continuously, up to 2000W.
2.Highly linear, does not require sectional calibration.
3.Excellent absorption capability.
4.Available with 50mm apertures.
5.Water cooling feature.
6.Broadband 266 nm-10.6 umabsorber
7.Water-cooled for 10 to 2000 W average power measurement
Product Specifications:
Model | BND-2000W-D50? ?? |
Absorption | 90% |
Wavelength?Range | 266nm-10.6um |
Power?Range | 10W-2000W |
Scale | Auto |
Aperture | 50mm |
Power?Resolution | 0.1W |
Response?Time(0-95%)(a) | <5s |
Calibration?Uncertainty | <3.5% |
Non-linearity | <±1% |
Accuracy | ±4% |
Damage?Threshold?(b) | 1kW/cm2?@2kW |
Cooling | Water |
Recommended?Water?Flow?Rate @Full?power?(c) | 5L/min |
Dimensions | ? 131×39.3mm |
Cable?Length | 5m |
Connector?Type | DB15 |
Notes:
(a).Time from zero to 95% of stable value;
(b).Recommended laser diameter:>25mm@1.5kW;>20mm@2kW;
(c).Recommended water temperature range:18-30°C; Water temperature change rate:<1℃ /min.

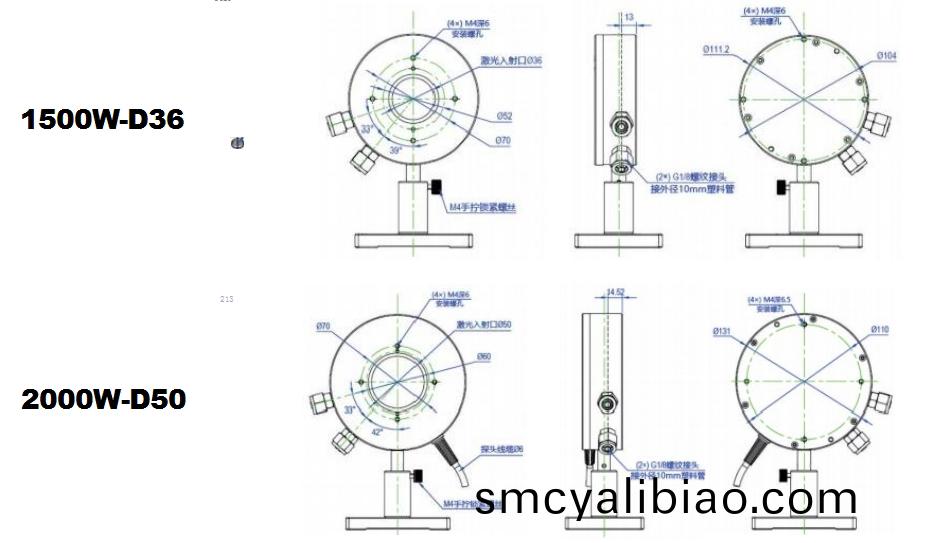

Dimensions of laser power sensor:
