Product Description：
Name：100W-5000W water-cooled thermopile laser power sensor
Type：BND-3000W-D50-YJ
The BND-5000W-D50-YJ is a water cooled thermal power sensor is designed for very high powers with Φ50 mm aperture. it can measure power from 100 w to 3,000 W. it has a deflecting cone and annular absorber that withstands high power densities to 1.0 kW/cm. lt covers the spectral range from 266 nm to 10.6um.
Power sensor Features:
1. Continuously laser power measurement,up to 5000W;
2. High linearity,sectional calibration is not required;
3. High absorption;
4. 50mm aperture
5. Water Cooled;
6. V-Groove is optional.
Model | BND-5000W-D50-YJ |
Absorption | 90% |
Wavelength?Range | 266nm-10.6um |
Power?Range | 100W-5000W |
Scale | Auto |
Aperture | 50mm |
Power?Resolution | 0.1W |
Response?Time(0-95%) (a) | 5s |
Calibration?Uncertainty | <4% |
Non-linearity | <±1% |
Accuracy | ±4% |
Damage?Threshold?(b) | 1.0 kW/cm2?@3kW |
Cooling | water cooled |
Recommended?Water?Flow Rate@Full?power(c) | 8 L/min |
Dimension | Φ 143×55mm |
Cable?Length | 5m |
Connector?Type | 90% |
Notes:
(a).Time from zero to 95% of stable value;
(b).Recommended laser diameter:>25mm@5kW,>20mm@3kW;
(c)Recommended Water temperature range:18-30°C;Water temperature change rate:<1℃ /min.

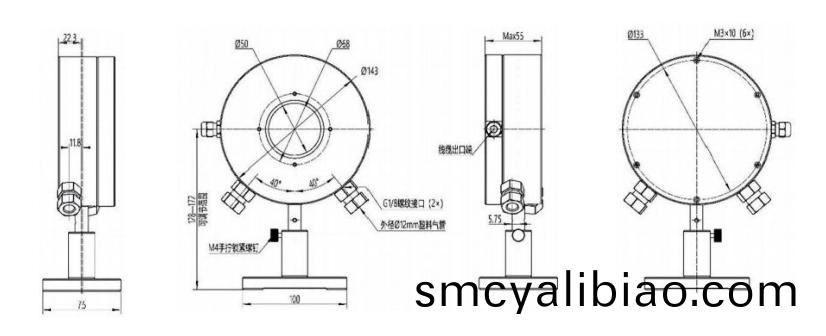

Dimension:
