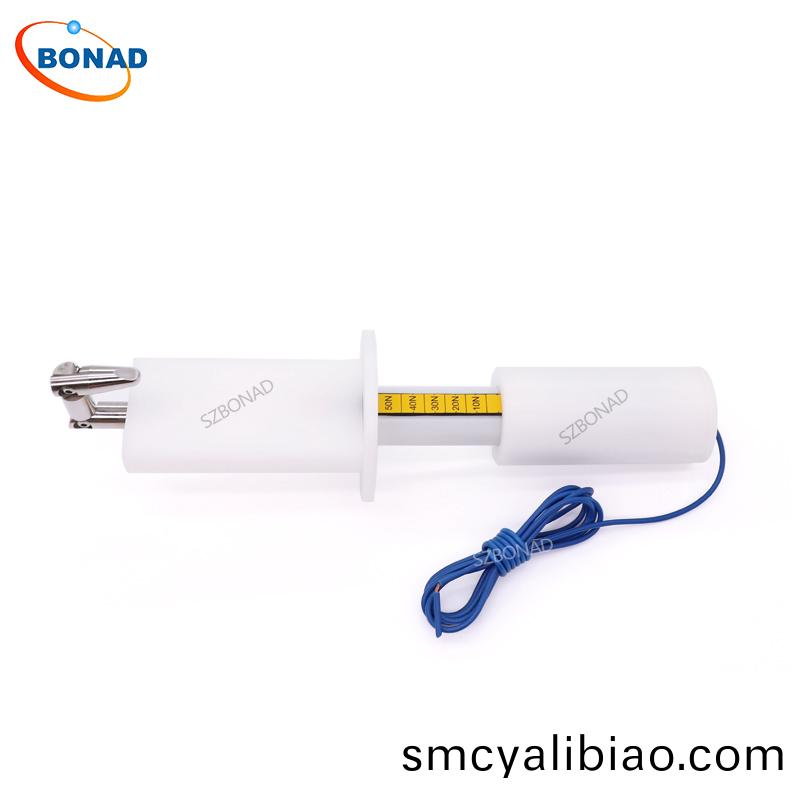

IEC61032 IP2x test finger probe B

Article NO.: BND-B

Technical Parameters:

1, Knurled Finger Diameter:12mm

2, Knurled Finger Length :80mm

3, Baffle Plate Diameter :50mm

4, Baffle Plate Length : 100mm

5, According to :IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032,

IEC69745-1

IP2X Test Finger Probe B with 50N

Model: BND-BF

Standard: IEC61032-1997, IEC60529-2001, GB/T4208-2008, IEC60065,IEC60335 and UL

etc.

Notes:

Both joints shall permit movement in the same plane and the same direction through an

angle of 90o with a 0o to +10o tolerance.

Technical Parameters:

Kunrled finger diameter:12mm

Knurled Finger length:80mm

Baffle plate diameter:50mm

Baffle plate length:100mm

Baffle thickness:20mm
