Product Description：

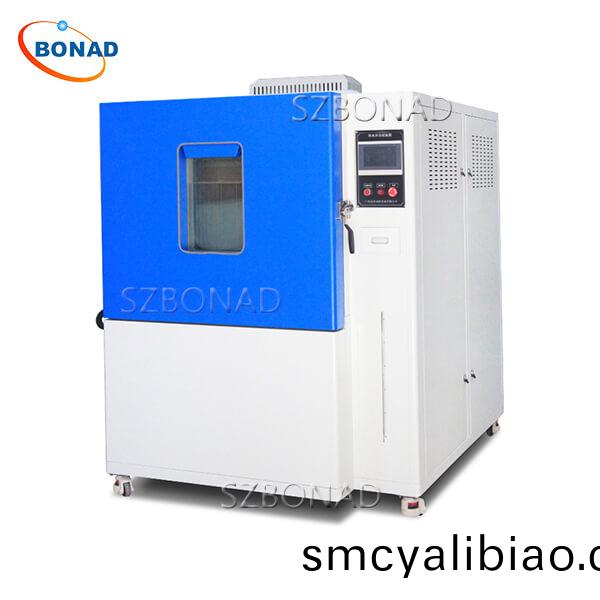

ISO 16750 Ice Water Thermal Shock splash water Test Chamber
Type：BND-BSFJ-1000L
Test Purpose:
This test simulates a thermal shock induced by ice water and applies to products in the splash areas of the vehicle. The purpose of this test is to simulate ice water splashing over a hot system/component. This happens when driving on wet roads during the winter. Failure modes are mechanical cracking of materials or seal failures caused by different temperature expansion coefficients. An additional failure mode not addressed in 5.3.2.1 is a loss of tightness and the intrusion of water into the system/component.
Test standards:
ISO 16750-4: 2006/GB/T 28046.4-2011
Structural parameters | |
External dimensions | About 1500*deep 1900*high 2250 mm |
Inner box size | About 1000*Inlet depth 1000*height 1000 mm |
Number of spray holes | 1 sewing spray torion; |
Spraying position | On the right side of the inner box |
Spirit and sample distance | 325?±?25mm (manual adjustment) |
Function parameters | |
High temperature room temperature range | RT+10℃～150℃ |
Heating rate | RT+10℃～150℃≤45min |
Water temperature control range | （0～+4）℃ |
Cooling rate | 25℃～2℃≤60min |
Water spray | （3～4）L/3S |
Test liquid values | Remove water or+3%Arizona fine dust |
Spray time per cycle (30 minutes) | 3s, interval time: interval time: 29m57s (touch screen setting) |
Number of cycles | 100 times (touch screen setting) |
Electrical parameter | |
Device power supply | 380V/50Hz, three -phase and five -line system |
equipment power | 12.0KW |
Safety protection function | Leakage protection, water deficiency protection, short circuit protection, phase sequence protection, heat overload protection |
