Product Description：
Name：IEC 60529 IPX3/4 handheld brass water spray/splashing nozzles
Type：BND-IPX34P
Product information:

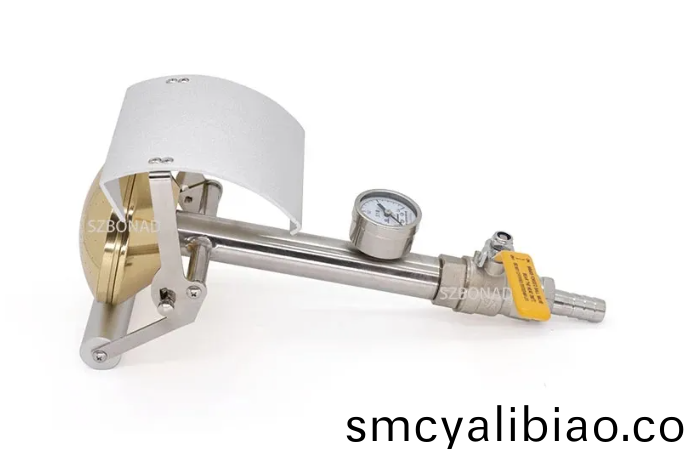

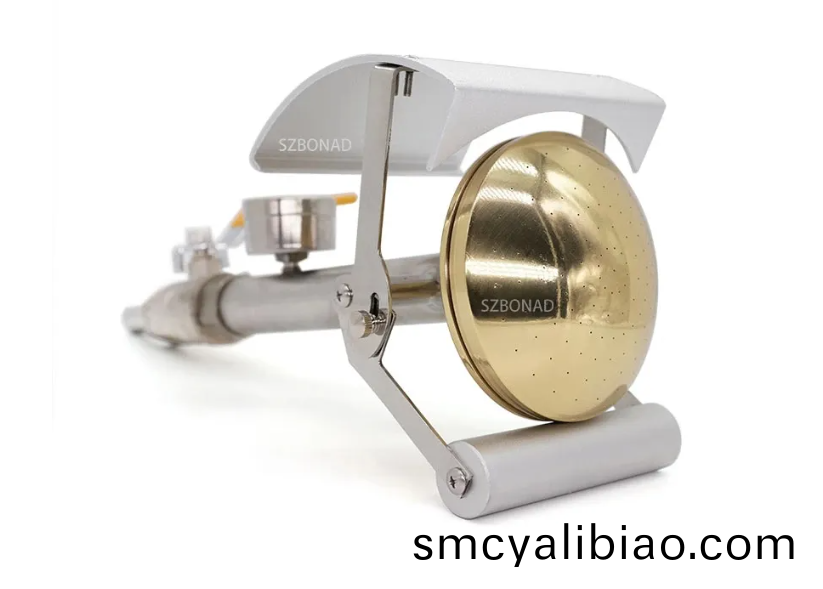

BONAD'S IP X3/ 4 Spray nozzle is a hand-held test device to verify protection against spraying and splashing water.
The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.
The pressure can be seen on the gauge which is convenient positioned by the Spray Tester IP x 3/4.
The spray pattern of the nozzle is made to the specifications of IEC 60529.
The removable shield feature makes it easy to test without the interference of the shield.
Technical parameters:
| No. | Item | Parameter |
| 1 | Water supply | Water flow rate is 50～150kpa clean water without inclusion. |

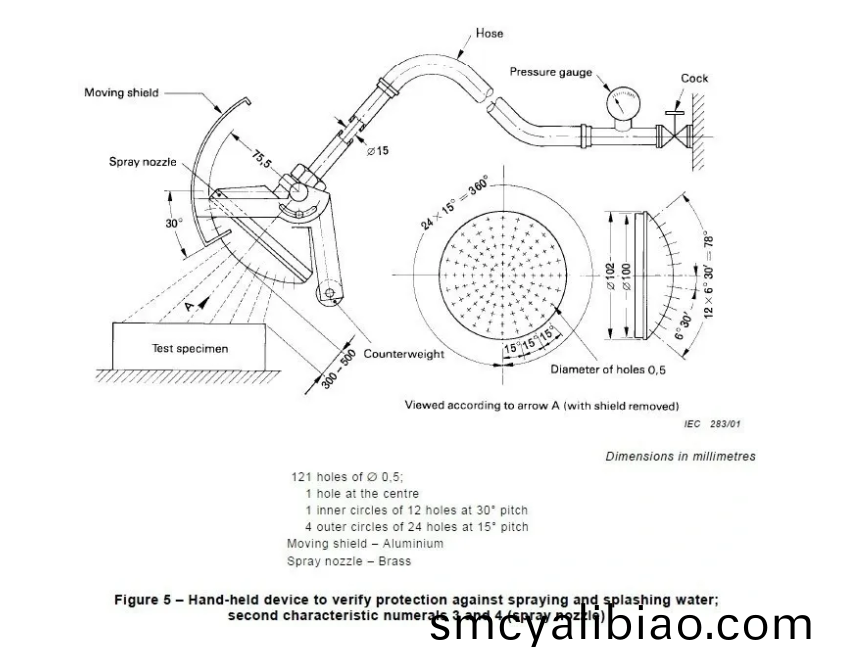

| 2 | Spray nozzle parameters | external diameter: Ф102mM ? ? ? ?spherical diameter: SФ75.5mm ? ? ? ?There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is?? 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total. ? ? ? ?The hole diameter: Ф0.5mm ? ? ? ?It is made of brass. |
| 3 | Water flow | 10L/min±5%, Flow meter can be?adjustable |
| 4 | Reference | IEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1 |
| 5 | Baffle | Removable |
| 6 | Pressure gauge | 0~0.25MPa |
| 7 | Site requirements | Dedicated IP waterproof test room, The ground should be flat with illumination ? ? ? ?With good function of inflow and drainage. Wall installation |
