Product Description：

UL /IEC/ EN 60950 IEC61032 Test Probe Kits

Model:BND-TPK01

Product Details:

The BND-TPK-01 contains the devices listed in the core of the UL / IEC / EN 60950 requirements. It includes the following:

· IEC Jointed Finger Probe (w/ banana jack in handle) (BND-B)

· 50mm Impact Test Ball (BND-G500R)

· Test Pin Probe: short (BND-13)

· Rigid Finger Probe (BND-11)

· Ball Pressure Tester (BND-QY102)

· Telecom Test Probe (BND-TB12)

Meets Requirements for Testing Standard(s) including but not limited to:IEC 60950EN 60950UL 60950CSA 950

Datasheets of BND-TPK01 test probe kit:

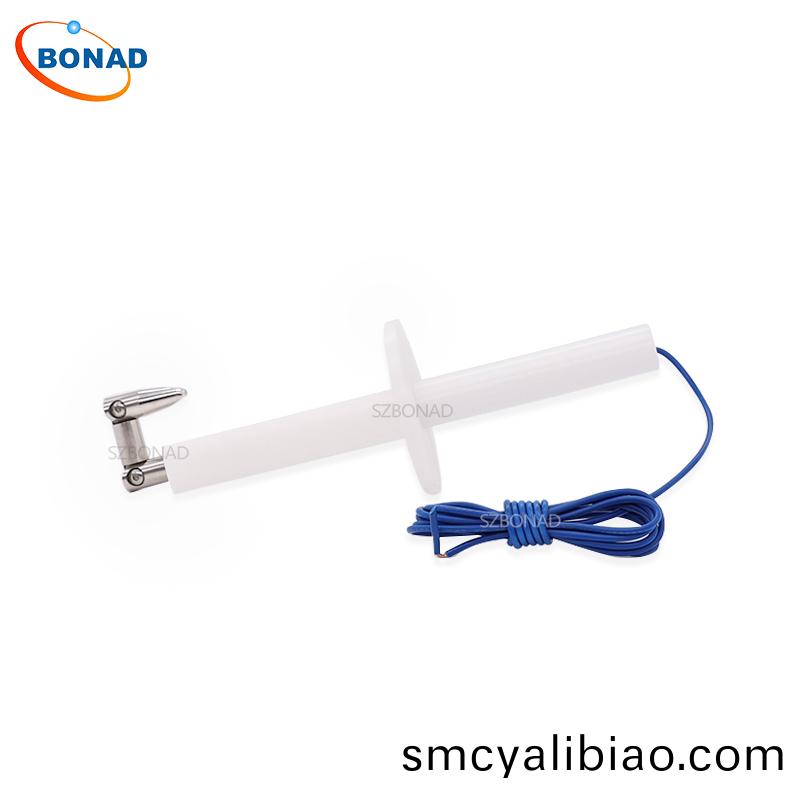

test probe B	?	IEC61032 ?IEC60950 ?IEC60335 IEC60529 ?IEC60045 ?IEC60884 IEC60745	Knurled Finger Diameter:12mm Knurled Finger Length:80mm Baffle Plate Diameter:50mm Baffle Plate Length:100mm Baffle Thickness:20mm

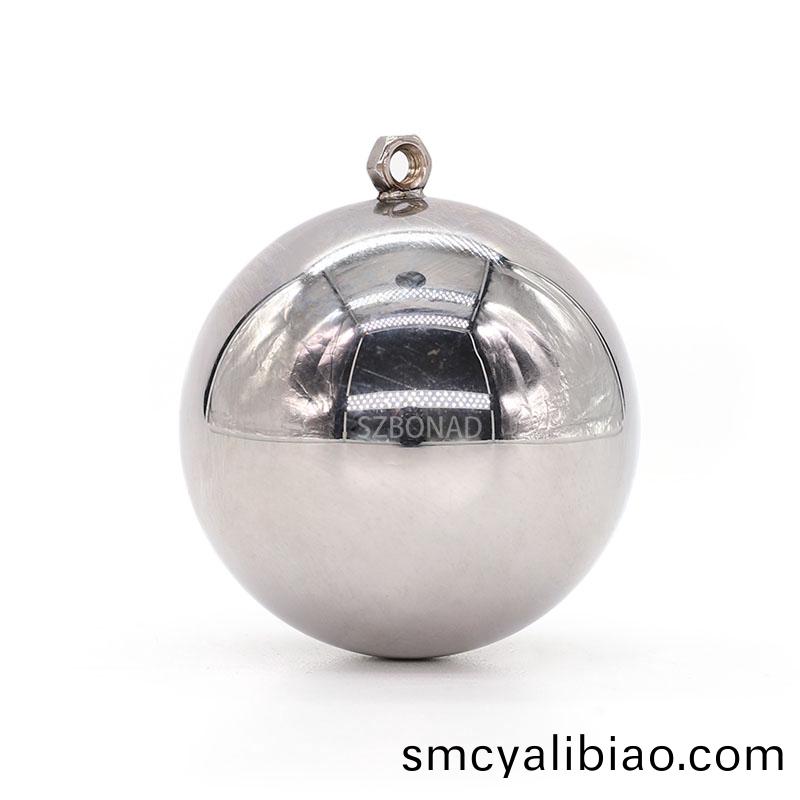

BND-G500R Test Sphere 500G with ring	?	IEC61032 ?IEC60529	Diameter:50mm Weight:227g

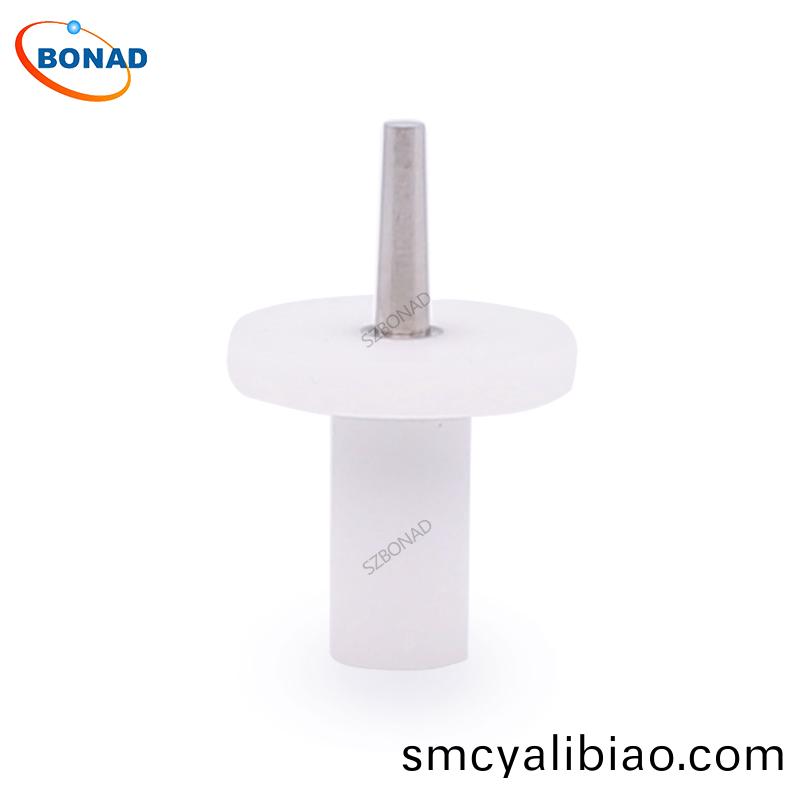

BND-13 Short Test Pin	?	IEC60065 IEC60335 IEC61032	The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm

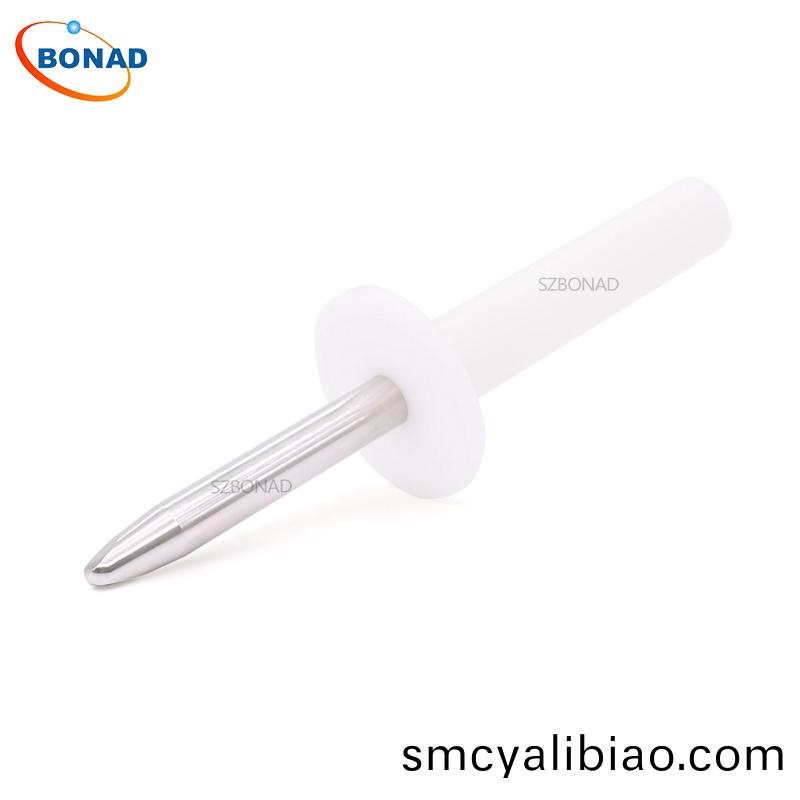

BND-11 Rigid Test Probe 11	?	IEC61032 IEC60065 IEC60335 IEC60884	Nodular Finger Length:80mm Nodular Finger Diameter:12mm Dam-board Diameter:50mm Dan-board Thickness:5mm
BND-TB12 12mm Telecom Test Probe	?	IEC60065 IEC60695 IEC60950	Probe Diameter:12mm Probe Length:80mm Baffle Plate Diameter:50mm

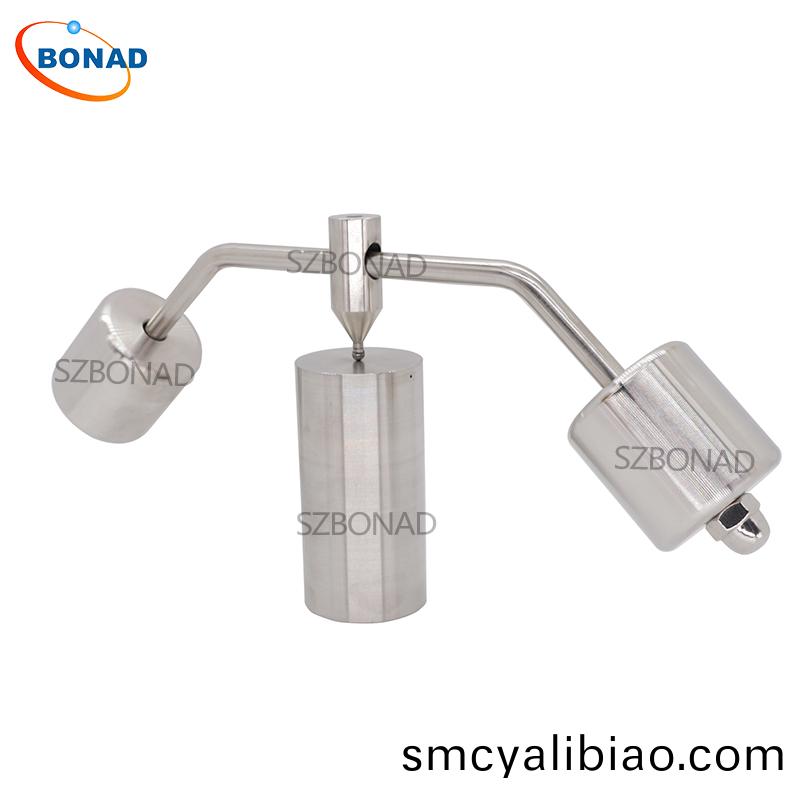

BND-QY102 Ball Pressure Apparatus	?	IEC60695-10-2 IEC60884 IEC60320 IEC60335 IEC60598 IEC60950	Ball diameter:5MM Total test pressure:20N±0.2N Samples bearing Diameter:50mm,Length:100mm Solid stainless steel cylinder
