Product Description：

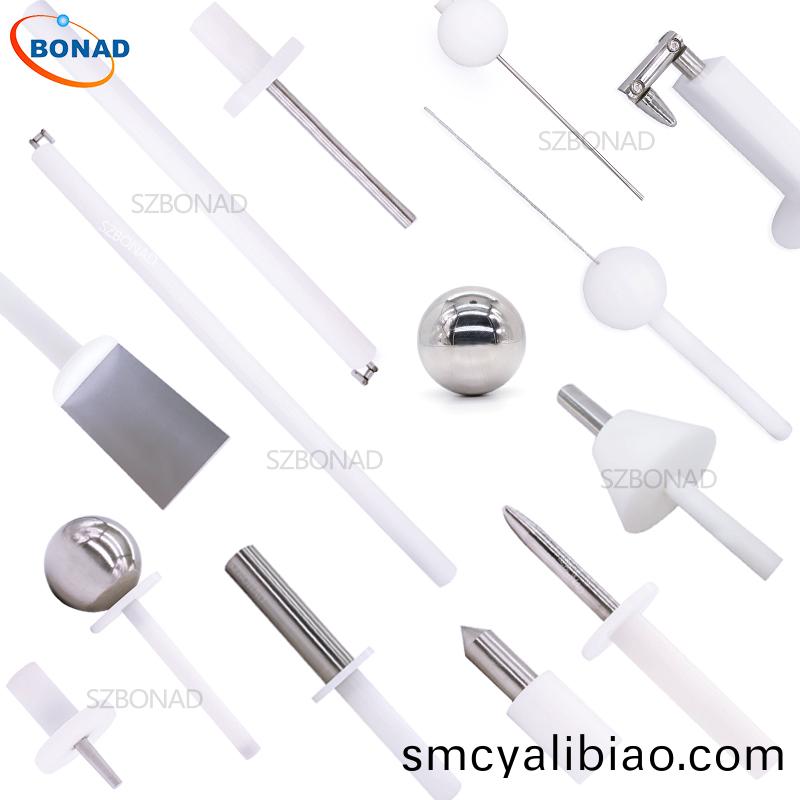

IEC 61032 Test Probe Kits
Model:BND-TPK07
The Standard Test Finger Probe meets the standards of IEC 61032.
Technical Parameters:
| Model | Describe | Reference standard | Specification |
| BND-A | IEC 61032 Figure 1 - Test probe A |
IEC60529 IEC61032 |
Ball diameter: 50 mm Baffle plate diameter: 45 mm Baffle plate thickness: 4 mm Handle diameter: 10 mm Handle length: 100 mm Material: Nylon + stainless steel |
| BND-B | IEC 61032 Figure 2 - Test probe B |
IEC60529 IEC61032 IEC60335 IEC60884 IEC60745 IEC60045 IEC60950 IEC60238 IEC60601 IEC60968 IEC61010 IEC60065 |
Knurled finger diameter: 12 mm Knurler finger length: 80 mm Baffle plate diameter: 50 mm Baffle plate length: 100 mm Baffle thickness: 20 mm |
| BND-C | IEC 61032 Figure 3 - Test probe C |
IEC61032 IEC60529 |
Test probe length: 100 mm Test probe diameter: 2.5 mm Dam-sphere diameter: 35 mm Handle diameter: 10 mm Handle length: 100 mm Material: Nylon + hardened steel |
| BND-D | IEC 61032 Figure 4 - Test probe D |
IEC61032 IEC60529 |
Test probe length: 100 mm Test probe diameter: 1 mm Dam-sphere diameter: 35 mm Handle diameter: 10 mm Handle length: 100 mm Material: Nylon + hardened steel |
| BND-G500 | IEC 61032 Figure 5 – Test probe 1 | IEC61032 |
Diameter: 50 mm Weight: 500 g |
| BND-G15 | IEC 61032 Figure 6 – Test probe 2 | IEC61032 |
Diameter: 12.5 mm Weight: 15 g |
| BND-11 | IEC 61032 Figure 7 – Test probe 11 |
IEC61032 IEC60065 IEC60335-1 IEC60884-1 IEC60238 IEC60950 IEC61010 |
Nodular Finger length: 80 mm Nodular Finger diameter: 12 mm Dam-board diameter: 50 mm Dam-board thickness: 5 mm Material: Nylon and stainless steel |
| BND-13 | IEC 61032 Figure 9 – Test probe 13 |
IEC60065 IEC60335-1 IEC60950 IEC61302 IEC60601 IEC60745 |
Test probe diameter: head 3 mm, tail 4 mm Test probe length: 15 mm Dam-board diameter: 25 mm Dam-board thickness: 5 mm Material: Handle is made of Nylon, tip is stainless steel |
| BND-12 | IEC 61032 Figure 8 – Test probe 12 | IEC61032 |
Test probe diameter: 4 mm Test probe length: 50 mm Dam-board diameter: 25 mm Dam-board thickeness: 4 mm Material: Handle is made of Nylon, tip is stainless steel |
| BND-19 | IEC 61032 Figure 13 – Test probe 19 (small finger probe Φ 5.6) |
IEC61032 EN71 ASTM F963 |
Knurled finger diameter: φ5.6 mm Head radius: 2.8 mm Knurled finger length: 44 mm(Three knurls,16.7 mm knurl) Material: Nylon and stainless steel |
| BND-18 | IEC 61032 Figure 12 – Test probe 18 (small finger probe Φ 8.6) |
IEC61032 EN71 ASTM F963 |
Knurled finger diameter: φ8.6 mm Head radius: 4.3 mm Knurled finger length: 57.9 mm (Three knurls,19.3 mm knurl) Material: Nylon and stainless steel |
| BND-31 | IEC 61032 Figure 14 – Test probe 31 | IEC61032 |
Test Rod diameter: φ25 mm Rigid Finger length: 80 mm Dam-board diameter: 60-110 mm |
| BND-32 | IEC 61032 Figure 15 – Test probe 32 | IEC61032 |
Test Rod diameter: φ25 mm Dam-board diameter: 50 mm |
| BND-41 | IEC 61032 Figure 16 – Test probe 41 | IEC61032 |
Test Rod diameter: 30 mm Rigid Finger length: 80 mm Handle diameter: 50 mm Handle length: 80 mm |
